Spesifikasjonene kort oppsummert
-
Accuracy
Standard: 0.05%
Platinum: up to 0.025% -
Process temperature
-40°C...125°C
(-40°F...257°F) -
Pressure measuring range
400 mbar...700 bar
(5.8 psi...10.500 psi) -
Main wetted parts
Alloy C276
316L
Rhodium -
Material process membrane
316L, AlloyC,
Rhodium> Gold -
Measuring cell
400 mbar...700 bar
(5.8 psi...10.500 psi)
relative/ absolute

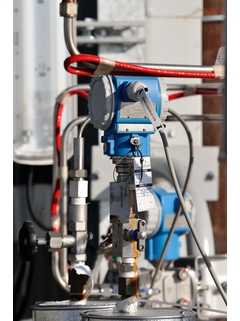

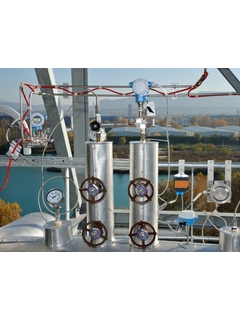

Bruksområde

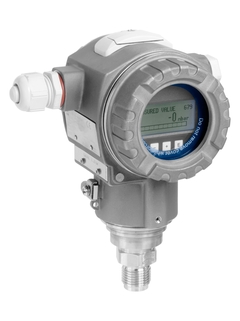

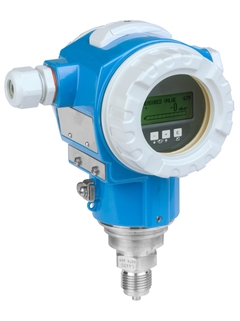

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.
Two chamber aluminum or stainless steel (316L) housing.
Process connections: Threads and flange connections
Process temperature: -40 to +125°C (-40 to +257°F)
Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)
Accuracy: ±0.05%, "Platinum" ±0.025%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Fordeler
Best accuracy, reproducibility and long-term stability
Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Overload-resistant and function-monitored from the measuring cell to the electronics
Available with mounted manifolds: always fit, always tested for leaks
Seamless and independent system integration (HART/PA/FF)
Videoer
Extended utvalg
-
High- end produkter
- Høyst funksjonelle og praktiske
Tekniske egenskaper
Enkelhet
-
Standardprodukter
- Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
-
Spesialprodukter
- Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
Varierende
| FLEX utvalget | Tekniske egenskaper | Enkelhet |
|---|---|---|
Fundamental utvalg Møter dine grunleggende målebehov |
Tekniske egenskaper
|
Enkelhet
|
Lean utvalg Håndter henkelt dine kjerneprosesser |
Tekniske egenskaper
|
Enkelhet
|
Extended utvalg Optimaliser prosessene dine med innovative teknologier |
Tekniske egenskaper
|
Enkelhet
|
Xpert utvalg Mestre de mest utfordrende applikasjonene dine |
Tekniske egenskaper
|
Enkelhet
Varierende |
Loading alternative products
Forgjenger
Suksesshistorier
Mest nedlastet
-
-
Teknisk informasjon (TI)
TI Cerabar S PMC71, PMP71, PMP75
Engelsk versjon - 04/2024
Process pressure measurement 1-5 V DC, HART, PA, FF
EN NO 01/04/202413/01/202229/09/202001/04/202016/04/2019Språk:
Engelsk
Versjon:
01/04/2024
Filstørrelse:
3.5 MB
Filnavn:
TI00383PEN_3624-00.pdf
-
-
-
Driftsinstruksjon (BA)
Description of Device Functions HART (V02.10.54) Cerabar S PM71 with MID Part Certificate
Engelsk versjon - 04/2017
Pressure transmitter with metal sensors; Overload-resistant and function-monitored; Communication via HART; Subcomponent suitablefor custody transfer measurement with NMi approval
EN NO 03/04/201710/12/201424/04/201219/12/2011Språk:
Engelsk
Versjon:
03/04/2017
Filstørrelse:
1.3 MB
Filnavn:
BA00413PEN_1316.pdf
-
277 dokumenter
-
-
Teknisk informasjon (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN NO 25/03/202415/09/202328/10/202130/07/202119/06/2020Språk:
Engelsk
Versjon:
25/03/2024
Filstørrelse:
1.1 MB
Filnavn:
TI00426FEN_2524.pdf
-
-
-
Teknisk informasjon (TI)
TI Cerabar S PMC71, PMP71, PMP75
Process pressure measurement
1-5 V DC, HART, PA, FFEN NO 01/04/202413/01/202229/09/202001/04/202016/04/2019Språk:
Engelsk
Versjon:
01/04/2024
Filstørrelse:
3.5 MB
Filnavn:
TI00383PEN_3624-00.pdf
-
-
-
Teknisk informasjon (TI)
Cerabar S PMP71 with MID Part Certificate
Pressure transmitter with metal sensors; Overload-resistant and
function-monitored; Communication via HART; Subcomponent
suitablefEN NO 16/12/2011Språk:
Engelsk
Versjon:
16/12/2011
Filstørrelse:
1.5 MB
Filnavn:
TI00451PEN_0111.pdf
-
-
-
Driftsinstruksjon (BA)
Cerabar S PMC71, PMP71, PMP75 HART V02.30.zz Operating Instructions
Pressure transmitter with ceramic and metal sensors
EN NO 01/08/202401/03/201810/12/201401/11/201407/05/2014Språk:
Engelsk
Versjon:
01/08/2024
Filstørrelse:
914.5 KB
Filnavn:
BA00271PEN_2022.pdf
-
-
-
Driftsinstruksjon (BA)
Cerabar S PMP71 Low Power 1-5V DC Output Operating Instructions
Low power pressure transmitter with metal sensors and 1-5V DC voltage
outputEN NO 25/08/201701/08/2017Språk:
Engelsk
Versjon:
25/08/2017
Filstørrelse:
1.1 MB
Filnavn:
BA01633PEN_0317.pdf
-
-
-
Driftsinstruksjon (BA)
Cerabar S PMC71, PMP71, PMP75 FOUNDATION Fieldbus (V 04.00.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
FOUNDA
TION FieldbusEN NO 01/08/202403/04/201710/12/201407/05/201430/04/2013Språk:
Engelsk
Versjon:
01/08/2024
Filstørrelse:
1.9 MB
Filnavn:
BA00302PEN_1922-00.pdf
-
-
-
Driftsinstruksjon (BA)
Description of Device Functions HART (V02.10.54) Cerabar S PM71 with MID Part Certificate
Pressure transmitter with metal sensors; Overload-resistant and
function-monitored; Communication via HART; Subcomponent
suitablefor custody transfer measurement with NMi approvalEN NO 03/04/201710/12/201424/04/201219/12/2011Språk:
Engelsk
Versjon:
03/04/2017
Filstørrelse:
1.3 MB
Filnavn:
BA00413PEN_1316.pdf
-
-
-
Driftsinstruksjon (BA)
Cerabar S /Deltabar S /Deltapilot S Description of device functions PROFIBUS PA V04.01.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN NO 03/04/201710/12/201407/08/201301/10/201101/05/2010Språk:
Engelsk
Versjon:
03/04/2017
Filstørrelse:
4.8 MB
Filnavn:
BA00296PEN_1616.pdf
-
-
-
Driftsinstruksjon (BA)
Cerabar S PMC71, PMP71, PMP75 PROFIBUS PA (V 04.01.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
PROFIB
USPAEN NO 01/08/202403/04/201710/12/201407/05/201407/08/2013Språk:
Engelsk
Versjon:
01/08/2024
Filstørrelse:
1.4 MB
Filnavn:
BA00295PEN_1922-00.pdf
-
-
-
Driftsinstruksjon (BA)
Cerabar S / Deltabar S / Deltapilot S, Description of device functions FOUNDATION Fieldbus V 04.00.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN NO 03/04/201710/12/201407/05/201430/04/201301/10/2011Språk:
Engelsk
Versjon:
03/04/2017
Filstørrelse:
6.3 MB
Filnavn:
BA00303PEN_1716.pdf
-
Søk reservedeler etter nummer i tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Mounting set housing T14/T15 sensor
-
Housing/housing accessories
TegningsnummerOrdrekode1252020440 -
-
Mounting set housing T17 / sensor
-
Housing/housing accessories
TegningsnummerOrdrekode1271020596 -
-
Push button housing, PA/FF
-
Housing/housing accessories
TegningsnummerOrdrekode1352022418 -
-
Push button housing, HART, version 1
-
Housing/housing accessories
TegningsnummerOrdrekode1352022419 -
-
Push button housing, HART, version 2
-
Housing/housing accessories
TegningsnummerOrdrekode1352024110 -
-
Cable gland M20, gasket
-
Adapter housing/cable entry
TegningsnummerOrdrekode1552020760 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
TegningsnummerOrdrekode1552020761 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
TegningsnummerOrdrekode1552020762 -
-
Plug 3-pole, M12, gasket
-
Adapter housing/cable entry
TegningsnummerOrdrekode1552020763 -
-
Housing filter VA,EPDM,F15/31/T14/17,1pc
-
further parts
Ordrekode71111056 -
-
Housing filter VA, VMQ, F15, T17, 1 pc.
-
further parts
Ordrekode71219639 -
-
Cover T14/T15 Alu, gasket
-
Cover
TegningsnummerOrdrekode2052020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
TegningsnummerOrdrekode2052020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
TegningsnummerOrdrekode2052028310 -
-
Cover T17 316L, gasket
-
Cover
TegningsnummerOrdrekode2071002774 -
-
Cover T17 316L, sight glass, gasket
-
Cover
TegningsnummerOrdrekode2071002810 -
-
Cover T17 316L, sight glass PC, gasket
-
Cover
TegningsnummerOrdrekode2071002811 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
TegningsnummerOrdrekode2071206965 -
-
Cover T14 316L, Ex d, sight glass, FVMQ
-
Cover
TegningsnummerOrdrekode2071206968 -
-
Sealing set FVQM, T14.5 pcs.
-
Sealing
TegningsnummerOrdrekode2171206971 -
-
Cover T14/T15 Alu, sight glass, gasket
-
Cover
TegningsnummerOrdrekode2071245247 -
-
Cover T14/T15 Alu,Exd,sight glass,gasket
-
Cover
TegningsnummerOrdrekode2071245249 -
-
Cover T14 316L, Ex d, sight glass, EPDM
-
Cover
TegningsnummerOrdrekode2071245250 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
TegningsnummerOrdrekode2152020429 -
-
Ground terminal T14/T15/T17, F30/F31
-
further parts
Ordrekode71290825 -
-
Cover T14/T15 Alu, gasket
-
Cover
TegningsnummerOrdrekode2552020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
TegningsnummerOrdrekode2552020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
TegningsnummerOrdrekode2552028310 -
-
Cover T17 316L, gasket
-
Cover
TegningsnummerOrdrekode2571002774 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
TegningsnummerOrdrekode2571206965 -
-
Electronics HART Ex, ext. p. b., v2.0
-
Electronic
TegningsnummerOrdrekode3052024111 -
-
Electronics HART Ex, v2.0
-
Electronic
TegningsnummerOrdrekode3052024400 -
-
Electronics HART Ex, v2.10
-
Electronic
TegningsnummerOrdrekode3071026358 -
-
Electronics HART Ex, ext. p. b., v2.10
-
Electronic
TegningsnummerOrdrekode3071026359 -
-
Electronic HART Ex, v2.11
-
Electronic
TegningsnummerOrdrekode3071196092 -
-
Electronics HART Ex, ext. p. b., v2.11
-
Electronic
TegningsnummerOrdrekode3071196093 -
-
Electronics HART Ex, v2.20
-
Electronic
TegningsnummerOrdrekode3071263933 -
-
Electronics HART Ex, ext. p. b., v2.20
-
Electronic
TegningsnummerOrdrekode3071263934 -
-
Elektronics HART Ex, v2.30
-
Electronic
TegningsnummerOrdrekode3071386147 -
-
Electronics HART Ex, ext. p. b., v2.30
-
Electronic
TegningsnummerOrdrekode3071386153 -
-
Upgrade electronics HART Ex, v2.1
-
Electronic
TegningsnummerOrdrekode3052026762 -
-
Upgrade electr. HART Ex,ext.push b.,v2.1
-
Electronic
TegningsnummerOrdrekode3052026763 -
-
Electronics PA, HW02.00, SW4.0
-
Electronic
TegningsnummerOrdrekode3071071824 -
-
Electronics PA, ext. p.b., HW02.00,SW4.0
-
Electronic
TegningsnummerOrdrekode3071071825 -
-
Electronics FF, HW2.00, SW3.00
-
Electronic
TegningsnummerOrdrekode3071071826 -
-
Electronics FF, ext. p.b., HW2.00,SW3.00
-
Electronic
TegningsnummerOrdrekode3071071827 -
-
Electronics PA, Ex, HW2.00, SW3.00
-
Electronic
TegningsnummerOrdrekode3071214057 -
-
Electronics PA, ext. p.b.,HW2.00, SW3.00
-
Electronic
TegningsnummerOrdrekode3071214064 -
-
Electronics FF, ext. p.b.,HW2.00, SW2.00
-
Electronic
TegningsnummerOrdrekode3071214066 -
-
Electronics FF, HW2.00, SW2.00
-
Electronic
TegningsnummerOrdrekode3071214069 -
-
Electronics FF, ext. p.b.,HW2.00, SW4.00
-
Electronic
TegningsnummerOrdrekode3071214890 -
-
Electronics FF, HW2.00, SW4.00
-
Electronic
TegningsnummerOrdrekode3071214892 -
-
Electronics PA, HW02.00, SW4.01
-
Electronic
TegningsnummerOrdrekode3071224775 -
-
Electronics PA, ext.p. b.,HW02.00,SW4.01
-
Electronic
TegningsnummerOrdrekode3071224776 -
-
Electronics 1-5VDC Low Power
-
Electronic
TegningsnummerOrdrekode3071327714 -
-
HistoROM / M-DAT, 16K
-
Memory
TegningsnummerOrdrekode3152027785 -
-
Terminal 2-pole, RFI, FF, Ex
-
Terminal module
TegningsnummerOrdrekode3552027691 -
-
Terminal 2-pole, RFI, PA, OVP, Ex
-
Terminal module
TegningsnummerOrdrekode3571028475 -
-
Terminal 2-pole, RFI, FF, OVP, Ex
-
Terminal module
TegningsnummerOrdrekode3571028476 -
-
Terminal 2-pole, RFI, PA, Ex
-
Terminal module
TegningsnummerOrdrekode3571121574 -
-
Terminal 3-pole,Li=0, RFI,HART,Ex ia/Exd
-
Terminal module
TegningsnummerOrdrekode3571191892 -
-
Termin.3-p.,Li=0,RFI,HART,OVP,Ex ia/Exd
-
Terminal module
TegningsnummerOrdrekode3571191894 -
-
Terminal 3-pole, 1-5VDC electronics
-
Terminal module
TegningsnummerOrdrekode3571327712 -
-
Display module VU340, Cbar/Dbar/Dpilot S
-
Display
TegningsnummerOrdrekode4071002865 -
-
Flat gasket 18,5x23,9x1,5 FKM, 5 pieces
-
further parts
Ordrekode52009800 -
-
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
-
further parts
Ordrekode71000221 -
-

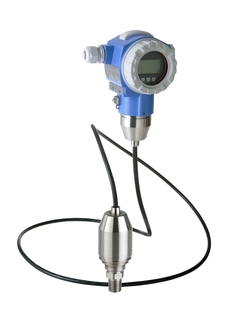

Cable PE, L=2m/80inch, separate housing
-
further parts
Ordrekode71043886 -
-
Cable PE, L=5m/200inch, separate housing
-
further parts
Ordrekode71043888 -
-
Cable PE, L=10m/400inch,separate housing
-
further parts
Ordrekode71043889 -
-
Cable FEP, L=5m/200inch,separate housing
-
further parts
Ordrekode71070738 -
-
Spare RFID TAG
-
further parts
OrdrekodeXPRFID- -
-
Flushing ring NPS 1" Cl. 150-2500, 316L
Ordrekode71377369 -
Flushing ring NPS 2" Cl. 150-2500, 316L
Ordrekode71377370 -
Flushing ring NPS 3" Cl. 150-2500, 316L
Ordrekode71377371 -
Flushing ring DN25, PN16-400, 316L
Ordrekode71377379 -
Flushing ring DN50, PN16-400, 316L
Ordrekode71377380 -
Flushing ring DN80, PN16-400, 316L
Ordrekode71377383 -
Weld-in adapter G1-1/2, 316L
Ordrekode52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Ordrekode52024470 -
Weld-in adapter G1/2, 316L, A DIN 3852
Ordrekode71389241 -
Weld-in adapter G1/2,316L, 3.1,A DIN3852
Ordrekode71389243 -
Mountingset, housing T14, special
Ordrekode71304770 -
Mounting bracket 2 valve,stainless steel
Ordrekode71372498 -
ToF Adapter FXA291
Ordrekode71007843 -
Mountingset Cerabar,Deltapilot,Levelflex
Ordrekode71102216
5 products & bundles
5 produkter
Ofte kjøpt sammen
Tilbehør
Beslektede produkter
