Spesifikasjonene kort oppsummert
Process temperature
0 to 60 °C (32 to 140 °F)
Bruksområde

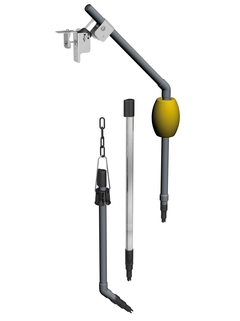

The Flexdip CYA112 is a modular assembly for sensor immersion in open basins, channels, or tanks. It allows nearly any kind of sensor mounting – chain, fixed, or free-swinging – and features a quick fastener for rapid and safe installation of Memosens or fixed-cable sensors. The assembly provides you with outstanding flexibility and enables you to optimally configure your measurement at low costs.
Flexdip CYA112 is a modular assembly for all measurements in open basins, channels and tanks in:
It forms a perfect team with the Flexdip CYH112 holder for simple sensor isolation.
The Flexdip team is suitable for all parameters, such as:
pH/ORP
Conductivity
Oxygen
Turbidity
Sludge level
Disinfection
UV photometry
Nutrients
Fordeler
The modular system allows an optimum configuration for every measuring place
Fast installation and exchange of Memosens sensors with contactless plug-in head
Twist-free installation of fixed-cable sensors
Easy to install and to maintain
Robust design: Suitable for process pressures up to 6 bar (87 psi)

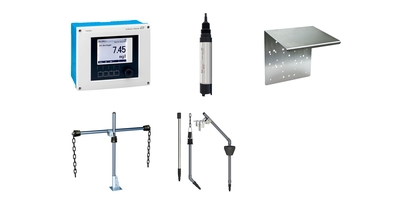

Få dette produktet som en del av en pakke
Enkle produkter
Enkelt å velge, intallere og bruke
Tekniske egenskaper
Enkelhet
Standardprodukter
Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
High- end produkter
Høyst funksjonelle og praktiske
Tekniske egenskaper
Enkelhet
Spesialprodukter
Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
FLEX utvalget
Tekniske egenskaper
Enkelhet
Fundamental utvalg
Møter dine grunleggende målebehov
Tekniske egenskaper
Enkelhet
Lean utvalg
Håndter henkelt dine kjerneprosesser
Tekniske egenskaper
Enkelhet
Extended utvalg
Optimaliser prosessene dine med innovative teknologier
Tekniske egenskaper
Enkelhet
Xpert utvalg
Mestre de mest utfordrende applikasjonene dine
Tekniske egenskaper
Enkelhet
Suksesshistorier
Automatisert system for pH-målinger på AVR
AVR Waste i Botlek, Rotterdam behandler opptil 1,7 millioner tonn restavfall hvert år. Se hvordan de optimaliserte pH-målinger takket være Endress+Hauser
Les hele artikkelen
Rent høykvalitetsøl og rent avløpsvann
Oppdag hvordan Heineken oppfyller alle bestemmelser for å beskytte det brasilianske miljøet med den digitale nitrat- eller SAC-sensoren Viomax CAS51D fra Endress+Hauser.
Les hele artikkelen
Ledeevnesystem optimaliserer produksjonen av biosurfaktanter
Holiferm produserer bærekraftige biosurfaktanter ved hjelp av en patentert gjæringsprosess med tyngdekraftsseparasjon. Selskapet var på utkikk etter en måte å automatisere målingen av det kritiske faseseparasjonstrinnet.
Les hele artikkelen
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Installation

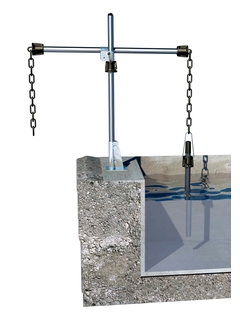

CYA112 is a modular assembly system for sensors in open basins, channels and tanks
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Material
Immersion pipe, connection angle, welded threads: stainless steel 1.4404 Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF O-rings: EPDM
Dimension
Immersion pipe diameter: 40 mm (1.57 inch) Length: 600, 1200, 1800 and 2400 mm (23.6, 47.2, 70.9 and 94.5 inch)
Process temperature
0 to 60 °C (32 to 140 °F)
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Installation
CYA112 is a modular assembly system for sensors in open basins, channels and tanks
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Material
Immersion pipe, connection angle, welded threads: stainless steel 1.4404 Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF O-rings: EPDM
Dimension
Immersion pipe diameter: 40 mm (1.57 inch) Length: 600, 1200, 1800 and 2400 mm (23.6, 47.2, 70.9 and 94.5 inch)
Process temperature
0 to 60 °C (32 to 140 °F)
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Installation
CYA112 is a modular assembly system for sensors in open basins, channels and tanks
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Material
Immersion pipe, connection angle, welded threads: stainless steel 1.4404 Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF O-rings: EPDM
Dimension
Tauchrohr Durchmesser: 40 mm (1.57 Zoll) Länge: 600, 1200, 1800 und 2400 mm (23.6, 47.2, 70.9 und 94.5 Zoll)
Process temperature
0 ... 60 °C (32 ... 140 °F)
Measuring principle
Amperometric oxygen measurement
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Installation
CYA112 is a modular assembly system for sensors in open basins, channels and tanks
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Material
Immersion pipe, connection angle, welded threads: stainless steel 1.4404 Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF O-rings: EPDM
Dimension
Immersion pipe diameter: 40 mm (1.57 inch) Length: 600, 1200, 1800 and 2400 mm (23.6, 47.2, 70.9 and 94.5 inch)
Process temperature
0 to 60 °C (32 to 140 °F)
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Material
Immersion pipe, connection angle, welded threads: stainless steel 1.4404 Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF O-rings: EPDM
Dimension
Immersion pipe diameter: 40 mm (1.57 inch) Length: 600, 1200, 1800 and 2400 mm (23.6, 47.2, 70.9 and 94.5 inch)
Process temperature
0 to 60 °C (32 to 140 °F)
Measuring principle
Single beam scattered light
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Installation
CYA112 is a modular assembly system for sensors in open basins, channels and tanks
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Material
Immersion pipe, connection angle, welded threads: stainless steel 1.4404 Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF O-rings: EPDM
Dimension
Immersion pipe diameter: 40 mm (1.57 inch) Length: 600, 1200, 1800 and 2400 mm (23.6, 47.2, 70.9 and 94.5 inch)
Process temperature
0 to 60 °C (32 to 140 °F)
Characteristic
Simple and easy installation Universal and flexible
Design
Versions in stainless steel or PVC
Process temperature
0 to 60 °C (32 to 140 °F)
Application
Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Mest nedlastet
Flexdip CYA112
Engelsk versjon - 12/2019
Immersion assembly for water and wastewater
EN
NO
DE ES FR IT JA PL PT RU ZH
13/12/2019
29/05/2012
01/05/2009
Språk:
Engelsk
Versjon:
13/12/2019
Filstørrelse:
708.9 KB
Filnavn:
TI00432CEN_1419.pdf
Flexdip CYA112
Avløpsvannenhet
EN
NO
BG CS DA DE EL ES ET FI FR HR HU ID IT JA KO LT LV NL PL PT RO RU SK SL SV TH TR ZH
13/12/2019
21/08/2013
01/05/2009
Språk:
Norsk
Versjon:
13/12/2019
Filstørrelse:
954.5 KB
Filnavn:
BA00432CNO_1419.pdf
22 dokumenter
Immersion assembly for water and wastewater
EN
NO
Tysk Spansk French Italiensk Japansk Polsk Portugisisk Russisk Kinesisk
13/12/2019
29/05/2012
01/05/2009
Språk:
Engelsk
Versjon:
13/12/2019
Filstørrelse:
708.9 KB
Filnavn:
TI00432CEN_1419.pdf
EN
NO
Bulgarsk Tsjekkisk Dansk Tysk Gresk Spansk Estlandsk Finsk French Kroatisk Ungarsk Indonesisk Italiensk Japansk Koreansk Lithuanian Latvian Nederlandsk Polsk Portugisisk Rumensk Russisk Slovakisk Slovensk Svensk Thai Tyrkisk Kinesisk
13/12/2019
21/08/2013
01/05/2009
Språk:
Norsk
Versjon:
13/12/2019
Filstørrelse:
954.5 KB
Filnavn:
BA00432CNO_1419.pdf
Sensoren, Messumformer, Kompaktgeräte and Armaturen
Kompetenz in der Flüssigkeitsanalyse
Språk:
Tysk
Versjon:
24/09/2024
Filstørrelse:
4.1 MB
Filnavn:
FA00007CDE_Analyse_21.24_LowRes.pdf
Sensors, transmitters, compact devices and assemblies
Experts in Liquid Analysis
Språk:
Engelsk
Versjon:
24/09/2024
Filstørrelse:
4.2 MB
Filnavn:
FA00007CEN_Analyse_21.24_LowRes.pdf
Leitfähigkeitsmessung in Industrieprozessen
Auswahl- und Engineeringhilfe für verschiedene Industrien und Anwendungen
Språk:
Tysk
Versjon:
27/04/2023
Filstørrelse:
2.4 MB
Filnavn:
CP01313CDE_0223_LF_Auswahlhilfe_web.pdf
pH measurement in industrial processes
Selection and engineering guide for different industries and applications
Språk:
Engelsk
Versjon:
02/12/2021
Filstørrelse:
3.2 MB
Filnavn:
CP00010CEN_1621_pH selection guide_2021.pdf
さまざまな産業およびアプリケーション向けの選択およびエンジニアリングガイド
Språk:
Japansk
Versjon:
12/01/2024
Filstørrelse:
3.5 MB
Filnavn:
CP01313CJA_0223_1024_Conductivity_sensor_selection_guide.pdf
さまざまな産業およびアプリケーション向けのpH測定セレクションガイド
Språk:
Japansk
Versjon:
08/02/2024
Filstørrelse:
2.6 MB
Filnavn:
CP00010CJA_1315_1024_pH_selection_guide.pdf
pH-Messung in Industrieprozessen
Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und Applikationen
Språk:
Tysk
Versjon:
01/12/2021
Filstørrelse:
3.3 MB
Filnavn:
CP00010CDE_1621_pH Auswahlhilfe_2021.pdf
Conductivity measurement in industrial processes
Selection and engineering guide for different industries and applications
Språk:
Engelsk
Versjon:
27/04/2023
Filstørrelse:
2.5 MB
Filnavn:
CP01313CEN_0223_cond_selection_guide_web.pdf
Søk reservedeler etter nummer i tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Kit CYA112: bracket for chain
Kit CYA112: rubber plug + prot. cap
Tegningsnummer
Ordrekode
10,12
71096704
Kit Adapter CCS5x + CCS5xD for CYA112
Kit CYA112: O-rings for quick fastener
Kit CYA112: O-rings for immersion tube
Multi functional clamp ring, CYA112,
Tegningsnummer
Ordrekode
3
71092049
Tegningsnummer
Ordrekode
7
71092054
Triangle carabiner (chain clip), CYA112,
Tegningsnummer
Ordrekode
8
71092052
Velco cable connector, 4 pieces
sensor adaptor NPT3/4 to G1
sensor adaptor G3/4 to G1
sensor adaptor PG13,5 to G1
Tool to de-assemble quick fastener
Tube D=40mm, L=150mm, V4A M36/G1 inch
Tube D=40mm, W=45o, V4A, M36/G1 inch
Tube D=40mm, W=90o, V4A, M36/ G1inch
Tube D=40mm, L=600mm, V4A M36/M36
Tube D=40mm, L=1200mm, V4A M36/M36
Sealing cap stainless steel CYA112
spray cleaning CYA112 600mm
spray cleaning CYA112 1200mm
Allen key, CYH112, CYA112
