Digital disinfection sensor for total chlorine Memosens CCS53E

Digital total chlorine sensor
Memosens CCS53E

Memosens disinfection sensor for wastewater and utilities in all industries

CCS53E
Laster inn pris
Pris midlertidig utilgjengelig
Price on request
aktiverer pris
pris: gi informasjon
from CHF ??.-
Memosens CCS53E sensor to measure total chlorine
  • F
  • L
  • E
  • X
©Endress+Hauser

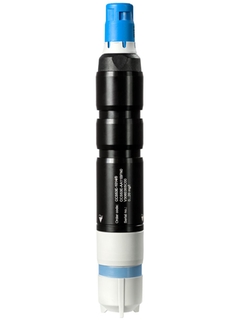

Memosens CCS53E total chlorine sensor

Flowfit CYA27 assembly with pH and disinfection sensor
  • F
  • L
  • E
  • X
©Endress+Hauser

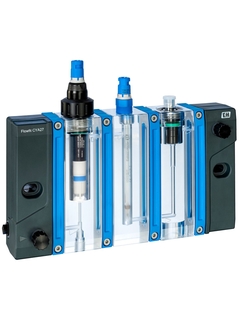

Total chlorine sensor CCS53E in Flowfit CYA27 assembly

Memosens CCS53E total chlorine sensor

Spesifikasjonene kort oppsummert

  • Measuring range

    0 to 5 mg/l total chlorine or
    0 to 20 mg/l total chlorine

  • Process temperature

    0 to 55 °C , non-freezing
    (32 to 130 °F)

  • Process pressure

    1 bar relative (14,5 psi relativ)
    Max. 2 bar (max. 29 psi)

  • Measuring method

    Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
    All components are reduced at the working electrode
    Almost pH independent

Bruksområde

Total chlorine is the mixture of free and bound chlorine components and thus a good indicator of residual disinfectants in discharge and process water. Memosens CCS53E provides continuous measurements of total chlorine, even after periods when no chlorine is present. This enables to measure "zero" chlorine, the absence of chlorine. Thanks to Memosens 2.0 technology, the sensor combines maximum process and data integrity with simple operation. This is the perfect basis for predictive maintenance.

The sensor Memosens CCS53E for total chlorine measures reliably in:

  • Wastewater treatment plants: to control the outlet water and enable reuse

  • Process water in utilities of all industries: to detect chlorine and avoid any damage, for example in cooling towers

  • Food and beverage industry: to ensure hygienic filling and high food quality in washing water and to protect membranes in reverse osmosis systems

  • Drinking water: to ensure disinfection and avoid overdosing

  • Pool: to detect contaminants

Fordeler

  • The sensor is not deactivated after periods of time when no chlorine is present, but reacts right away. This continuous measurement facilitates quick responses to process changes and ensures compliance with regulations.

  • The low-maintenance, amperometric sensor reduces the cost of ownership of the measuring point, particularly compared to colorimetric measuring systems.

  • High process up-time: pre-calibrating the sensor and swaping it with plug & play enables a fast sensor exchange. Plus, the polarization time is faster with Memosens 2.0.

  • Easy combination with other relevant parameters of liquid analysis such as pH and ORP by easily connecting the Liquiline multiparameter transmitter.

  • Wide measurement range for different applications: From zero to trace measurement up to total chlorine concentrations of 20 mg/l.

Videoer

  • The digital total chlorine sensor Memosens CCS53E is part of our wide disinfection portfolio presented in this video - all you need for clean and safe water.
