Spesifikasjonene kort oppsummert
-
Ambient temperature range
+5 °C ... +35 °C
Temperature change maximum ±10 °C/h
With cooling device +5 °C ... +45 °C
Temperature change ±10 °C/h maximum; other temperatures on request -
Process temperature
≤ +1,300 °C
Depending on sampling probe -
Process pressure
800 hPa ... 1,200 hPa
Bruksområde

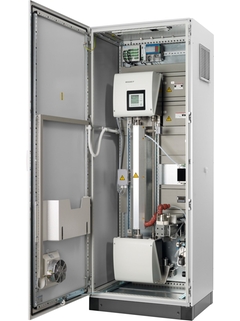

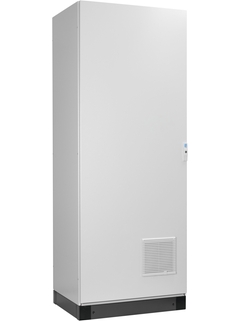

The MCS300P HW is a hot/wet extractive analyzer system for measuring gases. It detects IR- or VIS-active components with variable measuring ranges for monitoring and regulating combustion processes and exhaust gas purification systems. The heated system components prevent the water and acid dew points from being undercut. This results in low maintenance requirements, high reliability and long-term system stability, even under rough and difficult
application conditions.
Monitoring of flue gas conditioning in waste or sewage sludge incinerators
Monitoring of the scrubber in flue gas conditioning
Measurement directly at the kiln inlet in cement plants
Device properties:
Simultaneous measurement of up to 6 components plus O2
Temperature of the system components up to 200 °C
Automated sample point switching for up to 3 sample points
Automated adjustment to the zero and reference point
Integrated adjustment of the device without test gas
Flexible I/O module system
Fordeler
Economic, automatic adjustment without expensive test gases
Easy remote control by integration in existing networks
Automatic control of the complete measuring system and probe
Low maintenance and reliable due to hot measurement
In combination with probe SCP3000 also for measurements at high dust loads and high temperatures
Short response time due to high sample gas flow
