Spesifikasjonene kort oppsummert
-
Measured variables
Transmittance, opacity, relative opacity, extinction, dust concentration
-
Process temperature
–40 °C ... +600 °C
-
Measuring range
Transmittance: 100 ... 90 % / 100 ... 0 %
Opacity: 0 ... 10 % / 0 ... 100 %
Relative opacity: 0 ... 10 % / 0 ... 100 %
Extinction: 0 ... 0.045 / 0 ... 2
Dust concentration: 0 ... 200 mg/m³ / 0 ... 10,000 mg/m³
The measurement depends on measuring distance and dust properties
Bruksområde

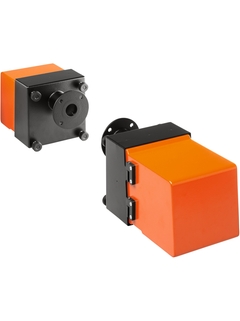

The DUSTHUNTER T200 is a measuring device for dust at medium to high concentrations. Basic measuring value is transmittance. Opacity and extinction can be calculated and displayed as well as the dust concentration after
gravimetric calibration. Furthermore, it has an integrated contamination check of the sender/receiver and reflector unit as well as an automatic self-alignment of the optical assembly. The DUSTHUNTER T200 is approved according to EN 15267.
Emissions monitoring at power plants and waste incineration plants
Monitoring of filter systems
Monitoring of dust load in factory halls
Control of fresh air and exhaust air units
Device properties:
Integrated contamination check for sender/receiver and reflector unit
Automatic self-alignment of the optical assembly
Automatic check of zero and reference point
For medium to high dust concentrations
For small to large measuring distances
Fordeler
Easy installation, commissioning and operation
Measurement independent of gas velocity, humidity and particle charge
Low maintenance due to self-monitoring and contamination check
Approved according to EN 15267
