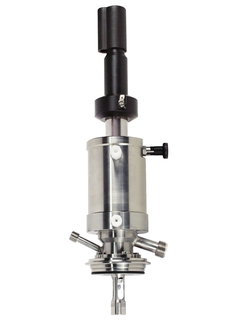

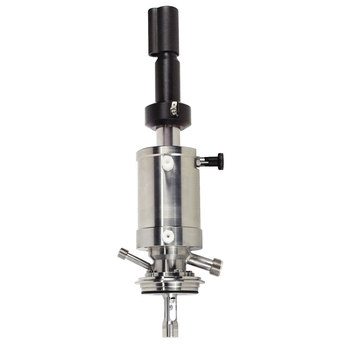

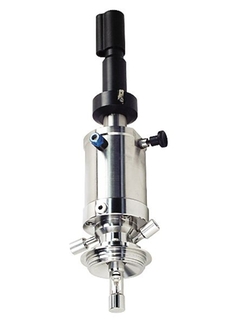

Name: Cleanfit H CPA475
Brand: Endress+Hauser
Availability: InStock

Dette produktet er ikke tilgjengelig lenger.

Se den nye generasjonen i området forgjenger/etterfølger, eller kontakt den lokale Endress+Hauser-representanten.

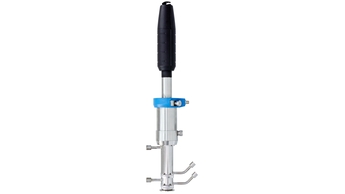

Erstatter

Cleanfit CPA875

Sterilizable assembly for the life sciences and food & beverage industries
Mer informasjon

Laster inn pris

Pris midlertidig utilgjengelig

Pris etter innlogging

Price on request

aktiverer pris

pris: gi informasjon

from CHF ??.-

Enkle produkter
Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

Hva er FLEX?

Standardprodukter
Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

Hva er FLEX?

High- end produkter
Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

Hva er FLEX?

Spesialprodukter
Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

Hva er FLEX?

FLEX utvalget	Tekniske egenskaper	Enkelhet
F L E X Fundamental utvalg Møter dine grunleggende målebehov	Tekniske egenskaper	Enkelhet
F L E X Lean utvalg Håndter henkelt dine kjerneprosesser	Tekniske egenskaper	Enkelhet
F L E X Extended utvalg Optimaliser prosessene dine med innovative teknologier	Tekniske egenskaper	Enkelhet
F L E X Xpert utvalg Mestre de mest utfordrende applikasjonene dine	Tekniske egenskaper	Enkelhet Varierende

Lær mer om FLEX-valgene

Application

Food, pharmaceuticals, process
Installation

Retractable assembly
Characteristic

Open and closed tank, piping (min. DN80)
Design

- hygienic style - manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".
Material

Holder: stainless steel 1.4435Sealing : different materials (FDA) available.
Dimension

Immersion depth: 48 - 102mm
(1.87 inch -3.97 inch)
Process temperature

max. 80 or 140°C
(176°F or 284°F)
Process pressure

max. 4/6 or 10 bar
(58 psi/87 psi or 145 psi)
Connection

DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, process connection DN50/PN10, process connection ASME 2"/150 lbs
Additional certifications

- 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability + cleanability)

Application

Food, pharmaceuticals, process
Installation

Retractable holder
Characteristic

Open and closed tank, piping (min. DN80)
Design

- hygienic style- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".
Material

Holder : stainless steel 1.4435Sealing : different materials (FDA) available.
Dimension

Immersion deepth : 48 - 102mm
Process temperature

max. 80 bzw. 140°C
Process pressure

max. 4/6 bzw. 10bar
Connection

DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2"/150lbs
Additional certifications

- 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability+cleanability)

Application

Food, pharmaceuticals, process
Characteristic

- Retractable holder- Open and closed tank, piping (min. DN80)
Design

- hygienic style- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".
Material

Holder : stainless steel 1.4435Sealing : different materials (FDA) available.
Dimension

Immersion depth : 48 - 102mm
(1.87inch -3.97inch)
Process temperature

max. 80 or 140°C
(176°F or 284°F)
Process pressure

max. 4/6 or 10bar
(58psi/87psi or 145psi)
Connection

DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2"/150lbs
Additional certifications

- 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability+cleanability)

Filter

Søk reservedeler etter nummer i tegning

- Vis tegning (PDF)

60 spare parts & accessories

Manual Kits CPA475 2013

further parts

Ordrekode

71217191
KIT CPA475 piston gel hand

further parts

Ordrekode

51506844
KIT CPA471/472 retr.pipe Gel hand short

further parts

Ordrekode

51503717
KIT CPA 471/472 retr.pipe Gel pn.short

further parts

Ordrekode

51503715
KIT CPA471 cylinder ss short

further parts

Ordrekode

51503775
KIT CPA475 electrode guide compl. G11/4"

further parts

Ordrekode

51506842
KIT CPA475 electrode guide complete

further parts

Ordrekode

51506841
KIT CPA475 APV connection

further parts

Ordrekode

51506835
KIT CPA475 VARIVENT connection

further parts

Ordrekode

51506836
KIT CPA475 dairy fitting DN50

further parts

Ordrekode

51506837
KIT CPA475 Tri Clamp 2" connection

further parts

Ordrekode

51506838
KIT CPA475 flange DN50 connection

further parts

Ordrekode

51506834
KIT CPA475 flange ANSI 2" connection

further parts

Ordrekode

51506833
KIT CPA475 rinse housing M G1/4"

further parts

Ordrekode

51506839
KIT CPA475 rinse housing G11/4" M G1/4"

further parts

Ordrekode

51506840
O-Ring set EPDM for CPA475

further parts

Ordrekode

51506408
O-Ring set EPDM for CPA475

further parts

Ordrekode

51518385
O-Ring set FPM (Viton) for CPA475

further parts

Ordrekode

51506407
O-Ring set Viton CPA475

further parts

Ordrekode

51518386
CPA471...5 all seals w/o medium contact

further parts

Ordrekode

71064624
Pneum. proxim. switches f.retrofitting

further parts

Ordrekode

51502874
KIT CPA47x electr. proxim.switches

further parts

Ordrekode

51502873
KIT CPA47X: Throttel check valve

further parts

Ordrekode

71329949
Splash protection cap for assemblies

further parts

Ordrekode

51517522
Protective sleeve wide f. KCl-electr.

further parts

Ordrekode

50080430
Protective pipe short f.process assembly

further parts

Ordrekode

51518182
Kit CPA471/472/475: Retr. pipe KCl pneum

further parts

Ordrekode

71162343
Kit CPA471/472/475:Retr. pipe KCl manual

further parts

Ordrekode

71162344
Kit CPA475: Hubrohr KCl Hand G11/4"

further parts

Ordrekode

71162345
KIT CPA47x:stop bolt with handle (1 pc.)

further parts

Ordrekode

51503731
KIT CPA47x pneu.connection G1/8 AD6 10p

Ordrekode

51503730
Kit Sensor output interface

Ordrekode

71361237
