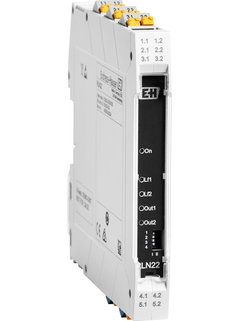

The RLN22 is a compact 1- or 2-channel, 24 VDC isolating amplifier with relay signal output. It is designed to safely operate e.g. proximity sensors or point level switches such as the Liquiphant FTL51B (NAMUR) as per IEC 60947-5-6. The DC interface monitors line faults such as breaks or short-circuits of sensors or mechanical switching contacts. The device is suited for use in hazardous areas and safety instrumented systems up to SIL 2 in accordance with IEC 61508.
Isolating amplifier for the transmission of binary switching signals
Input for proximity sensors, open contacts or contacts with resistive coupling elements
Galvanic isolation (3-way)
Line fault monitoring of input circuits or mechanical switching contacts
Group error message via DIN rail bus connector
Output-side relay contacts, direction of action (operating or quiescent current behavior) via DIP switch selection
Ambient temperature range: –40 to 60 °C (–40 to 140 °F)
Fordeler
Safe and reliable switching operations: trust your critical applications
Compact housing: up to 2 channels on 12.5 mm (0.49 in) for efficient use of space in control cabinets
Installation in hazardous areas; Ex approval for Ex zone 2
Up to SIL 2 in accordance with IEC 61508
Quick and easy wiring and commissioning: plug-in terminals, power supply and group error message module via DIN rail bus connector
RLN22: 1- oder 2-kanaliger NAMUR-Trennschaltverstärker mit
Relais-Signalausgang
CONTROL/INSTALLATION DRAWING for explosion h
azardous areas according to
Direc. 2014/34/EU (ATEX)
Sikkerhetsinstruks for Ex-områder (XA)
Engelsk versjon - 08/2024
New version available in English
ATEX/UKCA: ATEX II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC, II3(1) G Ex ec nC [ia Ga] IIC T4 Gc IECEx: [Ex ia Ga] IIC, [Ex iaDa] IIIC, Ex ec nC [ia Ga] IIC T4 Gc
