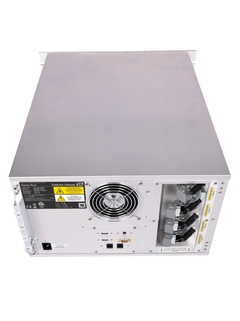

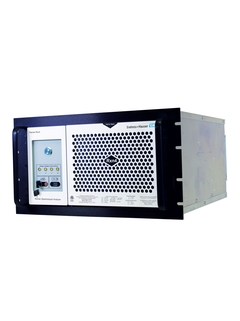

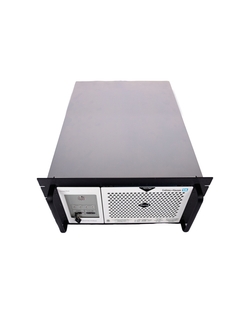

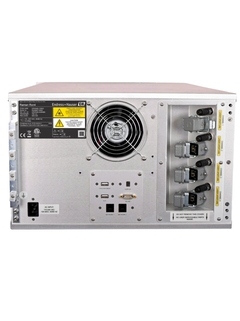

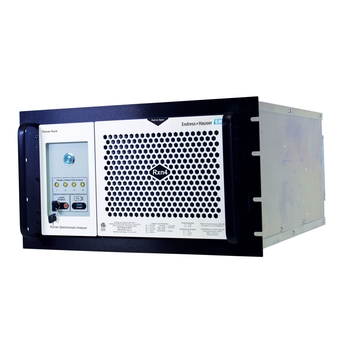

Raman Rxn4 analyzer

Raman spectroscopy

Base model: 532 nm, 785 nm, 1000 nm
Enclosure configuration: 532 nm, 785 nm, 1000 nm
Hybrid: 785 nm

Base Model and Enclosure configuration:
150-4350 cm-1 (532 nm)
150-3425 cm-1 (785 nm)
200-2400 cm-1 (1000 nm)
Hybrid: 175-1890 cm-1 (785 nm)

Base model and Enclosure configuration (average):
5 cm-1 (532 nm)
4 cm-1 (785 nm)
6 cm-1 (1000 nm)
Hybrid:
4 cm-1 (785 nm) average

Base model and Enclosure configuration:
Up to four channels
Hybrid:
Up to two channels

Base model:
Operating:
5 to 35 °C / 41 to 95 °F (532 nm, 785 nm)
5 to 30 °C / 41 to 86 °F (1000 nm)
Storage:
-15 to 50 °C / 5 to 122 °F
Hybrid:
Operating: 5 to 35 °C / 41 to 95 °F
Storage: -15 to 50 °C / 5 to 122 °F
Enclosure configuration:
Operating: (all wavelengths)
5 to 50 °C / 41 to 122 °F
Storage:
-15 to 50 °C / 5 to 122 °F

20 to 80 %, non-condensing

Base model and Hybrid:
100-240 V, 50-60 Hz, ±10%
Enclosure configuration:
120 V ±10%, 60 Hz -OR-
230 V ±10%, 50/60 Hz

Base model and Hybrid:
400 (max)
250 (typical start-up)
120 (typical running)
Enclosure configuration:
1560 (max)
1560 (typical start-up)
750 (typical running)

Base model and Hybrid:
120
Enclosure configuration:
240

Base model and Hybrid:
483 x 267 x 556 mm
19.02 x 10.52 x 21.89 inch
Enclosure configuration: (with optional trolley)
1175 x 1480 x 826 mm
46.26 x 58.27 x 32.52 inch

Base model:
28.5 kg / 63 lbs
Enclosure configuration:
185.5 kg / 409 lbs (with optional trolley)

Base model and enclosure configuration:
Raman Rxn-10 (with accessory optics)
Hybrid:
Channel 1 - Raman Rxn-20 (with accessory optics)
Channel 2 - Raman Rxn-10 (with accessory optics)

OPC
Modbus
HTTPS
(contact us for other options)

Base model and Hybrid:
19-inch rack package
Enclosure configuration:
NEMA 4X enclosure; wall-mountable, moblile trolley, or fixed stand

Base model and Hybrid:
ATEX, CSA, IECEx
Enclosure configuration:
Call support for options

Raman spectroscopy

Base model: 532 nm
Enclosure configuration: 532 nm

Base Model and Enclosure configuration:
150-4350 cm-1 (532 nm)

Base model and Enclosure configuration (average):
5 cm-1 (532 nm)

Base model and Enclosure configuration:
Up to four channels

Base model:
Operating:
5 to 35 °C / 41 to 95 °F
Storage:
-15 to 50 °C / 5 to 122 °F
Enclosure configuration:
Operating:
5 to 50 °C / 41 to 122 °F
Storage:
-15 to 50 °C / 5 to 122 °F

20 to 80 %, non-condensing

Base model:
100-240 V, 50-60 Hz, ±10%
Enclosure configuration:
120 V ±10%, 60 Hz -OR-
230 V ±10%, 50/60 Hz

Base model:
400 (max)
250 (typical start-up)
120 (typical running)
Enclosure configuration:
1560 (max)
1560 (typical start-up)
750 (typical running)

Base model:
120
Enclosure configuration:
240

Base model and Hybrid:
483 x 267 x 556 mm
19.02 x 10.52 x 21.89 inch
Enclosure configuration: (with optional trolley)
1175 x 1480 x 826 mm
46.26 x 58.27 x 32.52 inch

Base model:
28.5 kg / 63 lbs
Enclosure configuration:
185.5 kg / 409 lbs (with optional trolley)

Raman Rxn-10 with accessory optics
Raman Rxn-40
Raman Rxn-41

OPC
Modbus
HTTPS
(contact us for other options)

Base model and Hybrid:
19-inch rack package
Enclosure configuration:
NEMA 4X enclosure; wall-mountable, moblile trolley, or fixed stand

Base model and Hybrid:
ATEX, CSA, IECEx
Enclosure configuration:
Call support for options
