Raman-spektroskopi – avansert optisk analyseteknologi
Øk anleggssikkerheten, ivareta produktkvaliteten og optimaliser driften. Raman-spektroskopi måler prøvenes sammensetning og molekylstruktur fra laboratorium til prosess i sanntid.
Spesifikasjonene kort oppsummert
-
Laser wavelength
With non-contact and immersion optic:
532 nm, 785 nm, 1000 nm
With bIO-Optic or Raman optic system for single use:
785 nm, 1000 nm
With bio multi optic and bio sleeve or Raman flow assembly:
785 nm -
Body and window materials
Rxn-10 probe body: 6061 aluminum, 316L stainless steel, and 303 stainless steel
Bruksområde

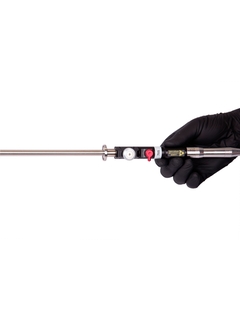

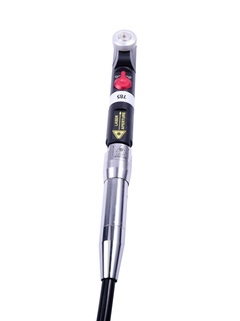

Designed for product and process development, the Rxn-10 probe is trusted to deliver high-performance measurements across a wide spectral range. Compact, lightweight, and flexible, it is ideal for both solids and liquids analysis. With interchangeable optics, it adapts easily to diverse applications. Now compatible with our new KFOC1B Raman fiber-optic cable, it offers enhanced certifications and greater installation flexibility for lab and industrial environments.
Chemical: reaction monitoring, blending, catalysis, hydrocarbon speciation, process unit optimization
Polymer: polymerization reaction monitoring, polymer blending
Pharmaceutical: API reaction monitoring, crystallization
Biopharmaceutical: monitoring, optimization, and control of cell culture, fermentation, and downstream applications
Food & Beverage: zonal heterogeneity mapping of meats and fish
Fordeler
Multipurpose use for both solids and liquids measurement
Lightweight and compact
Integrated laser safety interlock, including “laser on” indication and probe shutter
Flexible output compatible with a range of sampling options

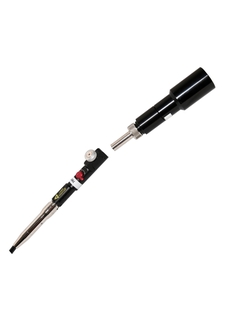

Easy switching of non-contact, immersion, and bioprocessing optics to suit a variety of applications
Wide spectral range, including access to the critical low-wavenumber region
Upgraded, Communications Multipurpose Riser (CMR)-certified KFOC1B Raman fiber-optic cable option for improved fire resistance, simplified regulatory compliance, and enhanced flexibility for easier routing and handling
