Mass flow rate, volumetric flow s. c. (standard condition), volumetric flow a. c. (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity

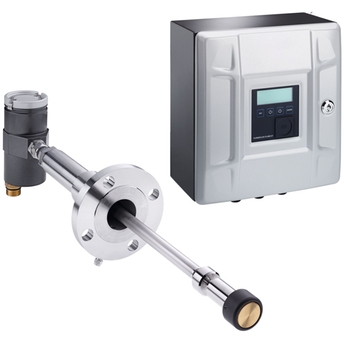

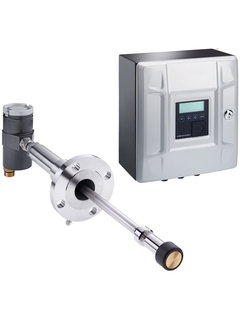

Detection of flare gas leaks, steam flow measurement, monitoring of gas losses, monitoring of steam injection in flare gas burning as well as process optimization are fields of use for this gas flowmeter FLOWSIC100-Flare-XT. It measures values such as gas velocity, gas volume, mass flow rate, molecular weight, volumetric flow and sound velocity. Additionally, it provides an intelligent device monitoring process and supports predictive maintenance - designed for current and future challenges.
Flare gas measurement for the production and processing of natural gas and associated petroleum gases (APG)
Flare gas measurement in chemical and petrochemical plants
Measurement of LNG boil-off gas
Device properties:
Reliable measurement even at high gas velocities and with changing gas compositions
Direct mass flow calculation without additional gas analyzers
Intuitive FLOWgateTM software for commissioning, operation and diagnostics
Self monitoring, self testing and predictive maintenance
Fordeler
Several standards and guidelines for flare gas measurement are observed
Maximum plant availability
Compatible with current and future communication architectures
Independent maintenance through verification on demand and support when required
Easy replacement of existing measurement systems, with suitable retrofit or upgrade solutions available
Schluchseewerk AG ønsket å registrere og optimalisere effektiviteten til turbinene sine ved pumpekraftverket i Wehr. Endress+Hauser tilbyr den optimale løsningen med sin ultrasoniske clamp-on-strømningsmåler.
GPsol har, sammen med Endress+Hauser, utviklet et system som måler hver enkelt komponent i utvinningsbrønner og gir så mye informasjon som mulig om den nåværende strømningen.
Mass flow rate, volumetric flow s. c. (standard condition), volumetric flow a. c. (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity
Measuring range
0,03 m/s ... 120 m/s (0.1 ft/s ... 394 ft/s)
Max. Measurment error
Volumetric flow, a. c.; 1 % ... 5 % Related to the measured value (in the range ≥ 0.3 m/s to measuring range end value) 0,5 % ... 1,5 % with spool piece and flow calibration Related to the measured value (in the range ≥ 1 m/s to calibration range end value)
Mass flow rate a.c.; 2 % ... 5.5 % Related to the measured value (in the range ≥ 0.3 m/s to measuring range end value) 1,5 % ... 2 % with spool piece and flow calibration Related to the measured value (in the range ≥ 1 m/s to calibration range end value)
IECEx: Zone 1: Ex db eb ia IIC T4 Gb Zone 1: Ex db ia IIC T4 Gb Zone 2: EX ec ia IIC T4 Gc
ATEX: Zone 1: II 2G Ex db eb ia IIC T4 Gb Zone 1: II 2G Ex db ia IIC T4 Gb Zone 2: II 3G Ex ec ia IIC T4 Gc
NEC/CEC (US/CA): Zone 1: Ex d ia IIC T4 Gb Zone 1: Class I, Zone 1, AEx d ia IIC T4 Gb Zone 1: Class I, Division 1, Groups B, C, D, T4 Zone 2: EX ec ia IIC T4 Gc Zone 2: Class I, Zone 2, AEx ec ia IIC T4 Gc Zone 2: Class I, Division 2, Group A, B, C and D, T4
Outputs
Up to 6 outputs when using I/O modules (Option) 16 bit: 4 ... 20 mA 7 V DC ... 30 V DC In accordance with NAMUR NE43 Passive, galvanically isolated Reverse polarity protection
Digital Outputs
Switching output: Up to 6 outputs when using I/O module (option) Electrically isolated Max. current: 70 mA Max. switching frequency: 50 Hz Max. input voltage: 30 V DC Max. saturation voltage at output: 0.5 V DC Switchable Namur/open collector Reverse polarity protection
Digital output/Frequency output: Up to 12 digital outputs when using I/O modules (option) Electrically isolated Max. current: 50 mA Max. switching frequency: 10 kHz Max. input voltage: 30 V DC Max. saturation voltage at output: 1.8 V DC Switchable Namur/open collector Reverse polarity protection
